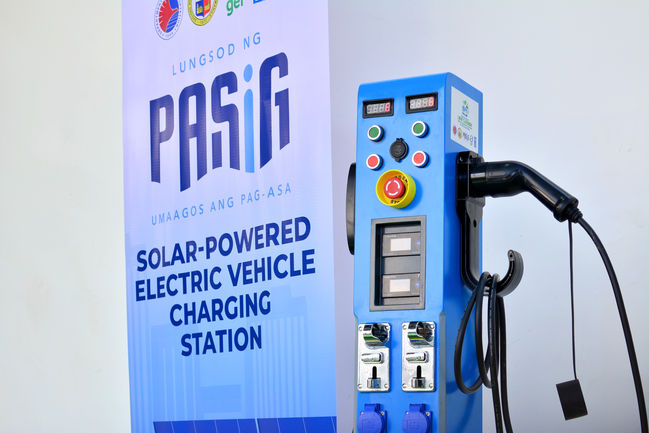

AC CHRG POST

Provides up to 5kW AC charging interface with automatic voltage regulation. Available with multiple AC charging ports and up to two (2) J-plug connectors for EV charging.

Available payment systems for integration: coin-operated payment and tap-card payment system.

CHRG AC Dual Post.png
2021-09-10 14.00.04.png

Technical Specifications

EV Supply Equipment:
Rated Power Output:
Rated Power Input:
Efficiency @ Rated Load:
Output Voltage:
Max Output Current:
Standby Power:
Protection Grade:
Voltage Input:
Current Input:
Frequency:
Charging Interface:
Max Operating Temp:
THD at Rated Power:
PF @ Rated Power:



AC Charger Mode 4
4kW: 2kW per port
4kW: 2kW per port
99%
230 VAC +/- 10%
20A: 10A per port
5W
IP44
230 VAC +/- 10%
20A
60Hz
J1772
40 °C
< 5%

0.99

For support or any questions:

RESET and START buttons for charging control

RESET and START buttons for charging control

Standard J-plug AC coupler and cable

With voltage regulation, surge, and overcurrent protection

With voltage regulation, surge, and overcurrent protection

Standard J-plug AC coupler and cable

LED countdown display for charging timer
