CharM DC Fast Charger


CHARGING IN MINUTES

CHRG Fast. CHRG Smart.

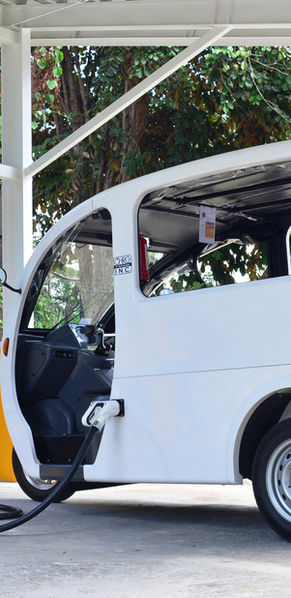

            CharM or Charging in Minutes is a system for fast charging electric vehicles (EVs) that uses the Lithium-ion battery storage technology. CharM provides an alternative charging strategy that eliminates the need for several hours in order to fully charge an EV. The conventional 4-6 hours in slow charging is reduced to less than an hour or even a matter of minutes for smaller vehicles.

           Fast charging is done without compromising the safety and integrity of the users and the vehicles respectively. CharM addresses the range anxiety of EV users especially those operating as mass transport vehicles like E-Trikes and E-Jeepneys.

Touchscreen user interface for top-of-the-line charger models

Cashless and NFC-based tap card payment system for top-of-the line charger models

Cashless and NFC-based tap card payment system for top-of-the line charger models

Emergency stop button for manual user override

Emergency stop button for manual user override

Charging mode selection (Charge by amount or by battery charge level)

Charging mode selection (Charge by amount or by battery charge level)

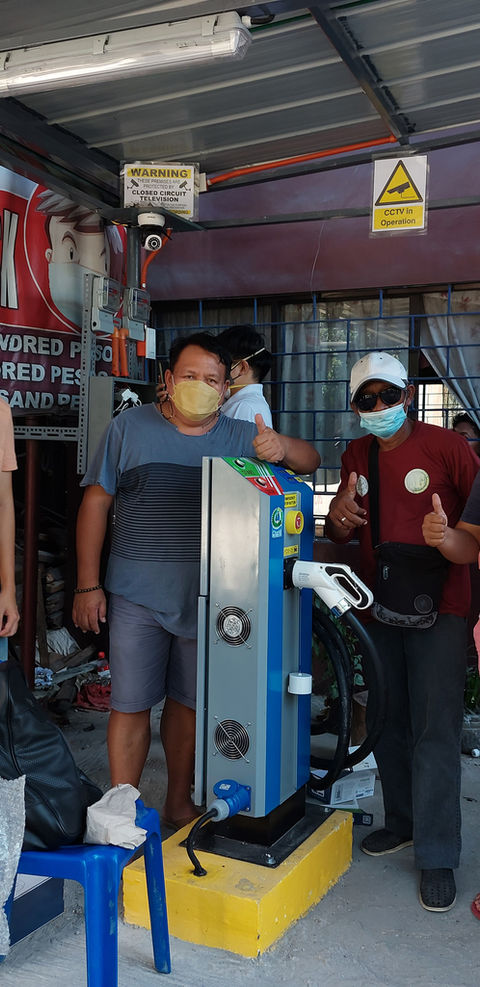

CharM DC Fast Charger - CHRG

Technical Specifications

Rated Power:
Voltage Range:
Rated Current:
Input Requirements:
Power Factor:
Payment System:
User Interface:
Communication:
Charge Connector:

5kW base power, expandable
48-150 VDC, configurable
up to 100ADC at 5kW
220VAC, single phase, L-N-E
0.99 PF at rated load
NFC tap-card cashless payment
Touchscreen user interface
Controller Area Network (CAN)

High-power charge coupler with communications and electronic lock

Safety:

Emergency stop button; Power connector auto-lock; RCD fault protection; Junction box secure access; Automatic battery charge detection

DC charging.jpg

For support or any questions:

CharM DC
Fast CHRGer

CharM (Charging in Minutes) provides an alternative charging strategy that eliminates the conventional 4-6 hours of charging to less than an hour or even a matter of minutes for electric vehicles including E-trikes and

E-jeepneys.
